Introduction
The structural integrity of metal components faces severe challenges as agricultural machinery operates in extreme dust erosion and high-humidity environments over long periods. Xiamen Ruicheng ensures every customized agricultural component maintains exceptional wear resistance in harsh conditions through multi-dimensional material improvement and surface treatment technologies. This deep customization for complex environments not only extends maintenance cycles but also significantly reduces the total operating costs for end-users.
In dusty environments, fine particles act like sandpaper, constantly cutting away at metal surfaces, while high humidity accelerates electrochemical corrosion processes. To counter this composite failure mode, we focus on developing precision metal components featuring high-hardness cores and specialized anti-corrosion coatings. Utilizing advanced metal processing techniques, Xiamen Ruicheng provides agricultural equipment manufacturers with decision-chain support from material selection to final delivery, ensuring stable performance in the field.
Why does dust erosion lead to premature failure of agricultural bearings?
Fine dust particles easily penetrate the clearance between bearings and gears during operation, forming typical abrasive wear and destroying the lubrication film. This abrasive wear from embedded hard particles is the primary cause of geometric precision loss and abnormal vibration, directly shortening equipment life. To address this, Xiamen Ruicheng utilizes precision metal machining to improve tolerance levels combined with optimized sealing structures to effectively block external media. As a professional metal parts supplier, we understand the vital importance of hardness gradients in resisting abrasive cutting.
Seal Failure: When seals crack in dry dust, debris quickly fills the lubrication space and accelerates wear.
Surface Spalling: Hard sand grains cause micro-cracks under cyclic stress, eventually leading to large-scale surface peeling.
Abrasive Cutting: Grooves carved by high-hardness quartz particles on metal surfaces become stress points inducing structural failure.
Lube Contamination: Particles mixing with grease form a grinding paste that turns the lubrication system into an abrasive destroyer.
🚜 The core of particle protection lies in building a solid physical defense through high-precision machining and hardness matching.
How do metal parts achieve long-term rust prevention in humid environments?
In rainy southern or coastal regions, high humidity causes widespread oxidation and combines with dust residues to create acidic environments. This hot and humid cycling condition requires agricultural metal parts to possess extremely high chemical stability and surface adhesion. Xiamen Ruicheng introduces specialized electroplating and thermal spraying processes during manufacturing to ensure components excel in salt spray testing.
Chemical Corrosion: Moisture in the air combines with carbon dioxide to form weak acids that continuously erode unprotected metal substrates.
Coating Adhesion: Common paint easily bubbles or peels in humid conditions, requiring high-performance chemical conversion film technology.
Galvanic Corrosion: Potential differences at junctions of different metals in moisture require insulation coatings or material homogenization.
Micropore Penetration: Moisture seeps through microscopic pores on metal surfaces, causing internal rust that eventually destroys parts from within.
☔ The key to moisture resistance is using composite coatings to cut off the contact path between water vapor and the metal substrate.
How to balance wear resistance and toughness through material selection?
Simply increasing metal hardness often brings the risk of increased brittleness, leading to fractures when machinery hits rocks or faces sudden loads. Ideal agricultural metal parts should possess a "hard exterior and tough interior" to balance wear resistance with impact resistance. Xiamen Ruicheng achieves localized hardness increases without altering the overall structure through precise induction hardening and carburizing processes.
Hardness Matching: Choosing appropriate alloy steels based on the stress of different parts ensures surface hardness meets design thresholds.
Stress Relief: Performing stress-relief annealing after precision machining prevents component deformation under complex working conditions.
Tissue Control: Changing metal grain size through heat treatment allows the substrate to effectively absorb energy from external impacts.
Cost Optimization: Using standard carbon steel in non-wear areas and high-performance alloys for core parts optimizes the price-performance ratio.
⚔️ A quality custom solution finds the most scientific balance between material mechanical properties and processing costs.
Environmental Adaptability Comparison of Agricultural Parts
| Feature Dimension | Standard Parts | Xiamen Ruicheng Custom | Improvement | Key Process Support |
|---|---|---|---|---|
| Sand/Dust Wear | HRC 25-30 | HRC 55-62 | 120% Increase | Surface Induction Hardening |
| Humid Rust Cycle | < 48h Salt Spray | > 720h Salt Spray | 15x Increase | Alloy Plating/Ceramic Spray |
| Fitting Precision | IT9-IT10 | IT5-IT7 | 2 Grades Up | High-speed CNC Machining |
| Impact Strength | Prone to Brittle Fracture | Gradient Hardness | 45% Tougher | Controlled Cooling Treatment |
Want to get a customized metal part solution and a detailed quote for your specific farming conditions? contact us
Analysis of Xiamen Ruicheng High-Efficiency Machining Capabilities
Xiamen Ruicheng possesses a complete metal processing chain, covering everything from raw material analysis and precision milling to complex heat treatment. We do not just provide standard products; we act as a technical partner involved in every decision from drawing optimization to field condition simulation. Through flexible production lines, we respond quickly to small-batch prototype testing and large-scale production, ensuring your products stand out in the market.

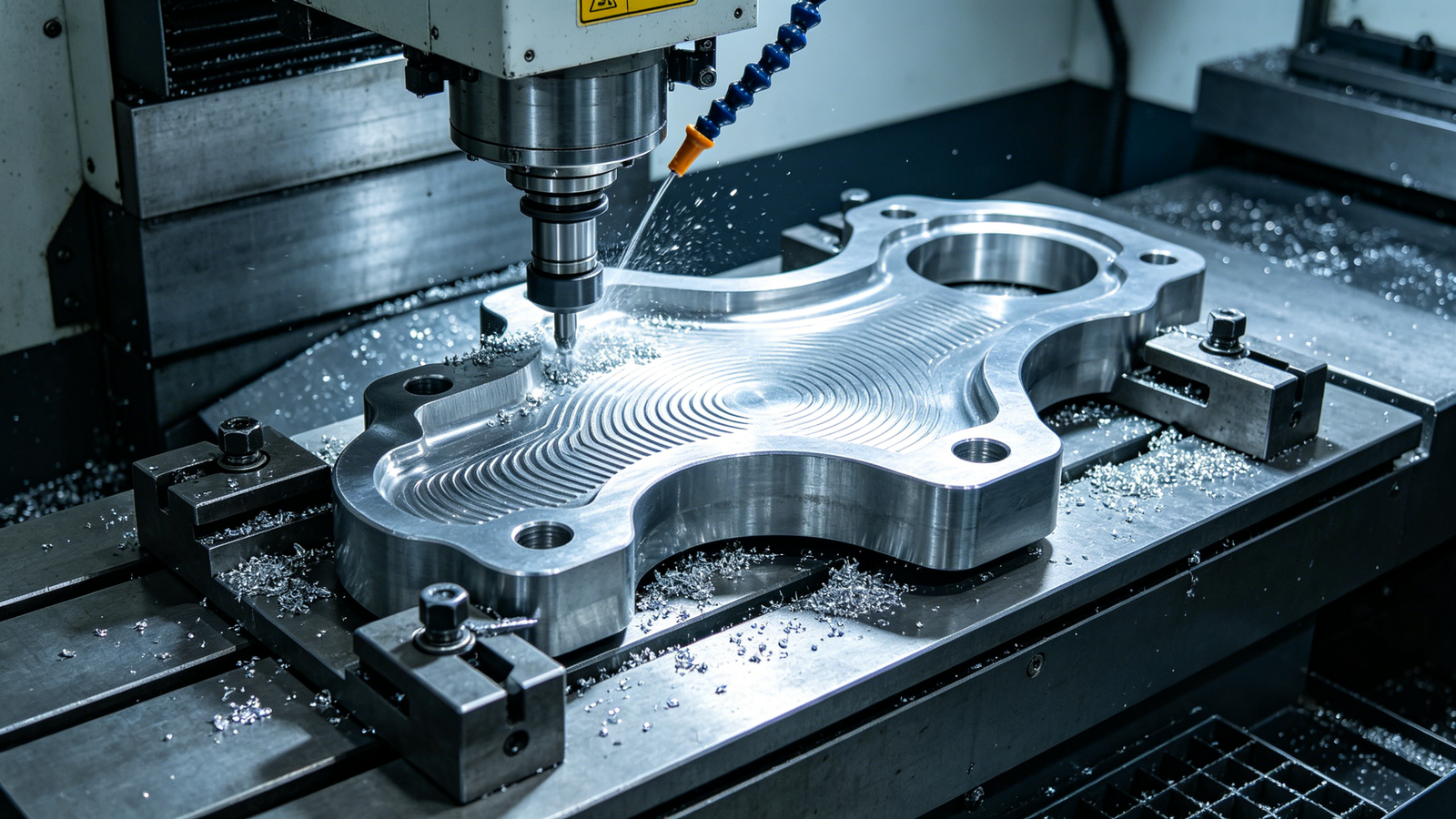

1.Multi-Axis Machining: Using high-precision CNC machines to complete complex surfaces in one setup, ensuring geometric consistency of irregular parts.
2.Deep Heat Treatment: Our independent heat treatment shop precisely controls carburizing depth and hardness gradients for superior physical properties.

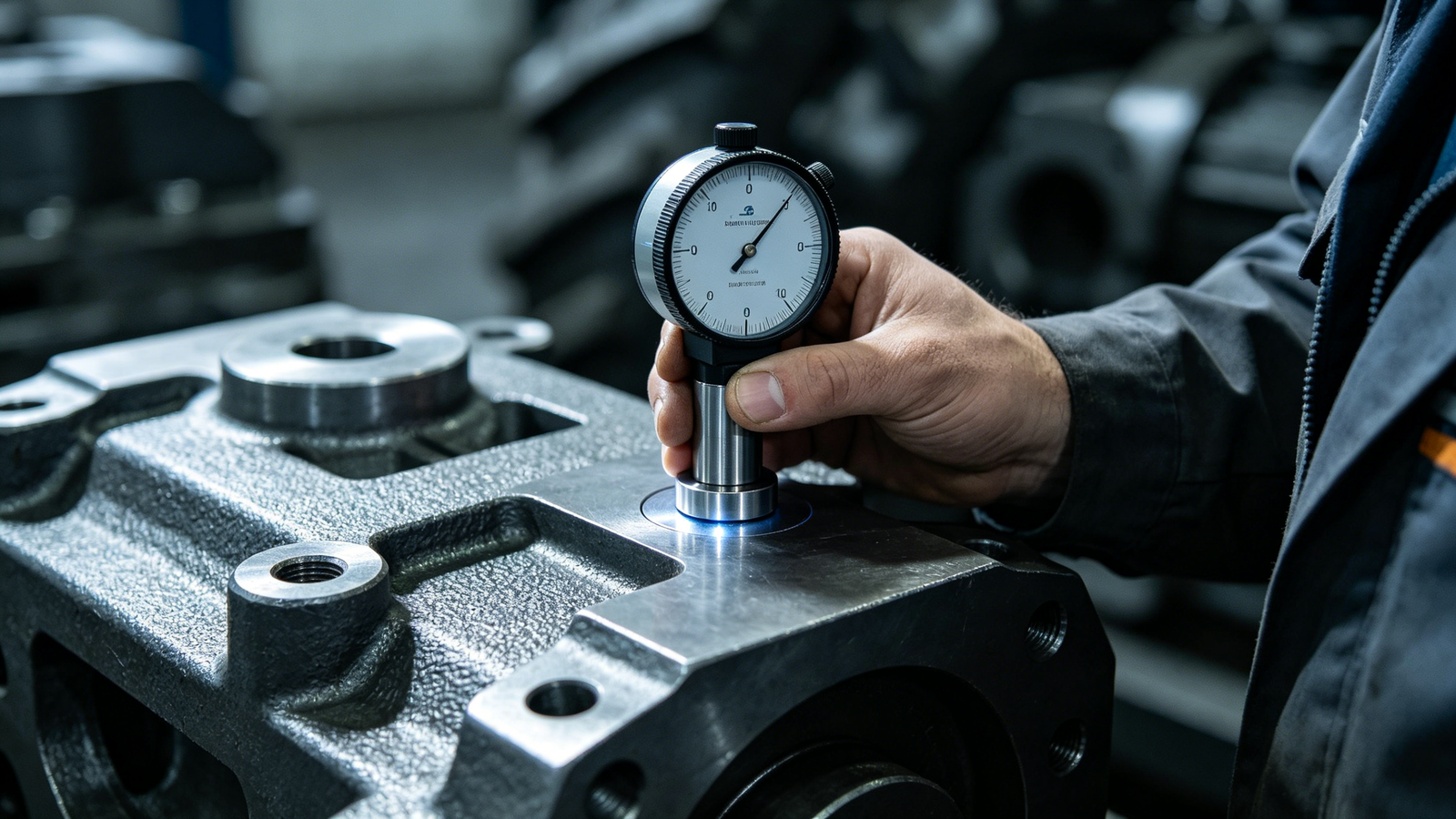

3.Strict QC System: Every batch undergoes hardness testing, flaw detection, and CMM measurement to ensure a factory pass rate above 99.8%.
4.Collaborative R&D: Our senior engineering team provides material optimization advice for dusty/humid environments, shortening your R&D cycle.
Agricultural Machinery Parts Sourcing FAQ
Q1: What are the core advantages and quality baselines of your custom wear-resistant parts?
Answer: Xiamen Ruicheng focuses on high-performance alloy steels, increasing wear resistance by over 2x compared to carbon steel; our baseline is that all critical transmission parts must undergo 100% non-destructive testing and HRC hardness checks to ensure a service life of at least 3,000 hours in harsh environments.
Q2: We plan to source harvester blade holders; what info is needed for a quick quote?
Answer: Simply send your 2D/3D drawings (STEP, CAD, or PDF) to our official email, noting the expected annual volume and specific working conditions like sand content or humidity; Xiamen Ruicheng promises a drawing review within 2 hours and a detailed quote with feasibility analysis within 12 hours.
Q3: For small-scale repair markets, what are the delivery cycles for different order volumes?
Answer: For small-batch R&D or repair orders (MOQ 20+), we can deliver within 7 days via flexible lines; for mass production (≥1000 units), the standard cycle is 15-20 days, and we maintain a raw material stock to ensure supply stability even during peak industry seasons.
Q4: What happens if we find dimensional deviations or material mismatches during installation?
Answer: We offer a "Quality First" guarantee; if specifications don’t match within 15 days of arrival, we initiate a technical review within 24 hours and arrange remanufacturing or air-freight replacement within 48 hours of confirmation, backed by a 12-month performance warranty.
Q5: Can you provide custom coatings for specific arid and semi-arid agricultural conditions?
Answer: Absolutely. Xiamen Ruicheng supports custom anti-static/anti-wear composite coatings for extreme arid zones; just provide your expected temperature ranges and contact media parameters, and our team will output a customized surface treatment plan within 3 business days for a small cost premium.
Conclusion
Customizing high-performance agricultural machinery parts is a systematic project that must consider the synergistic damage of dust erosion and moisture corrosion from the start. Xiamen Ruicheng has built a reliable barrier from material to finished product through precision machining and innovative surface treatments. Our goal is to help customers create agricultural equipment that truly stands up to the global challenges of farming through professional technical support and decision companionship.
For expert assistance in implementing for your production needs, visit our resource center or contact us. Let’s help you scale up your manufacturing with precision and efficiency!
