When it comes to precision metal fabrication, bending isn’t just about shaping the part—it directly impacts dimensional accuracy, structural integrity, and manufacturability.
A tiny bend error can mean failed fits, rejected lots, or even field recalls—especially in aerospace or medical applications.
How Does Bend Accuracy Affect Dimensional Tolerance?
Bend accuracy directly determines whether the final part stays within tolerance. Even a 1° deviation can shift hole positions by several millimeters, leading to assembly failures.
Ignoring the correct k-factor1 will cause incorrect flat pattern sizes, resulting in mismatched bends and holes.
Why Is Grain Direction Important in Sheet Metal Bending?
Grain direction affects the likelihood of cracking during bending. Bending parallel to the grain increases fracture risk, especially in high-hardness metals like stainless steel.
To improve strength and reduce cracking, always bend perpendicular to the grain.
What Role Does Bend Radius Play in Final Part Strength?
Choosing the correct bend radius2 is essential for maintaining part strength. If the radius is too tight, the material may crack or thin, reducing durability and lifespan.
| Material | Min Bend Radius (×T) | Notes |
|---|---|---|
| Aluminum 5052 | 1.0–1.5× | Can crack under tight bends |
| Stainless Steel 304 | 1.5–2.0× | Strong but less ductile |
| Copper | 0.8–1.0× | Very malleable |

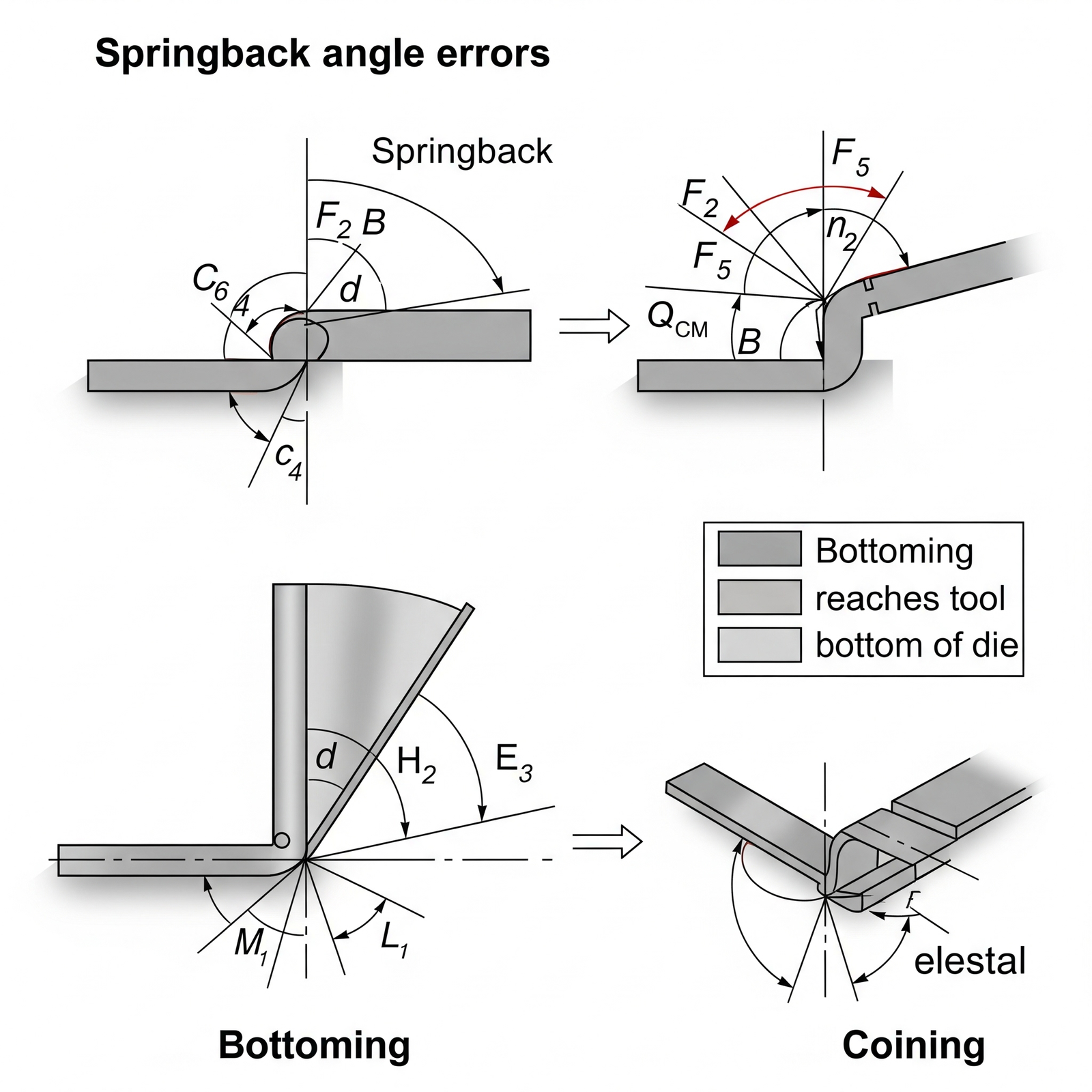

How Does Springback Affect Final Geometry?
Springback causes the metal to return slightly toward its original shape after bending. This results in angle errors if not properly compensated.
Using bottoming or coining techniques significantly reduces or eliminates springback3—ideal for tight-tolerance parts.

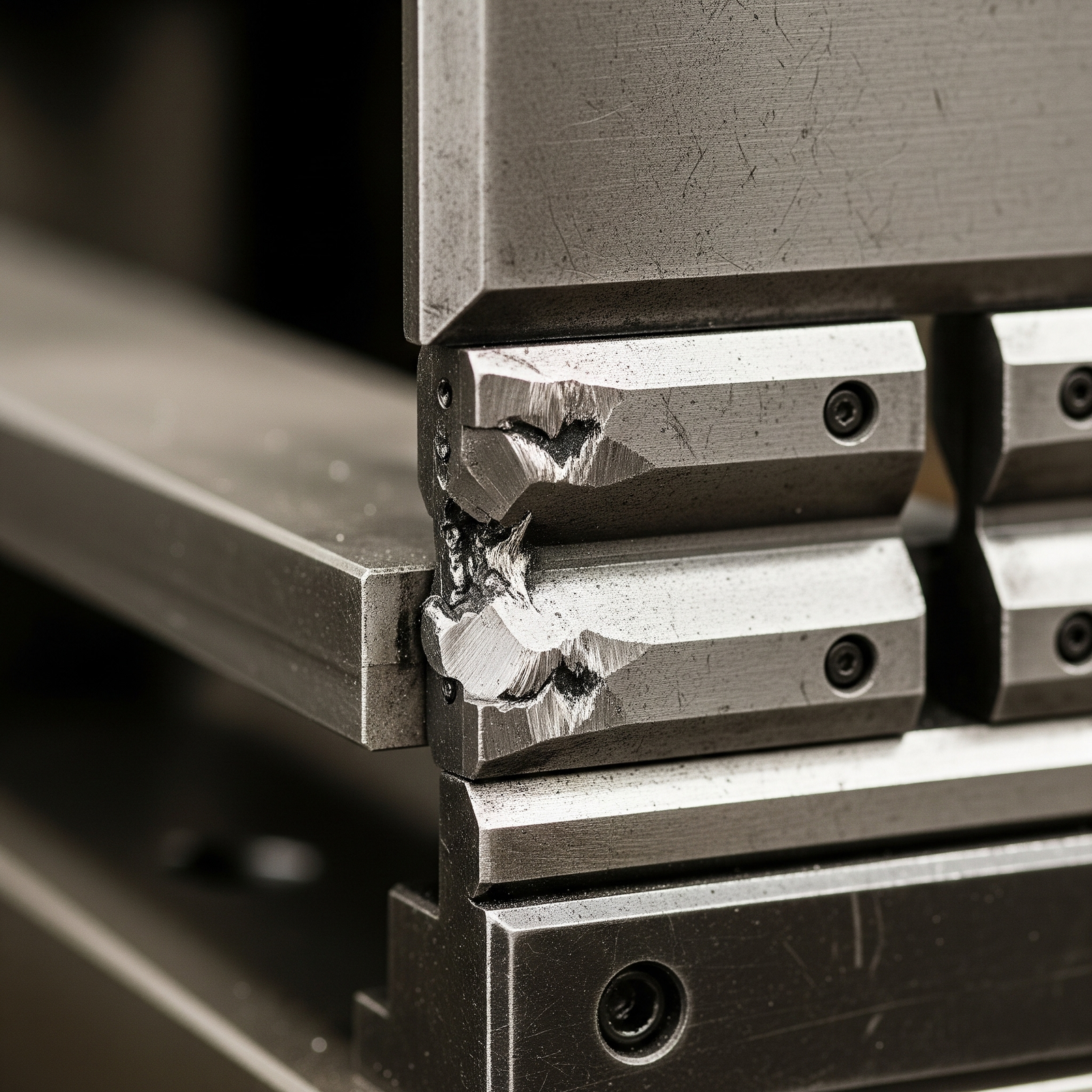

Can Improper Tooling Cause Part Inconsistencies?
Yes—using incorrect punches or dies results in inconsistent bends and possible surface defects. Worn tools can also cause dimensional variation or create burrs.
Choosing the right tooling and maintaining it regularly ensures stable production and high-quality results.
How Do Bend Sequences Influence Overall Flatness?
Bend sequence affects internal stress distribution, which in turn affects flatness and angular consistency.
Poor sequencing may lead to warping or twisting, especially on large or thin sheet metal parts. Plan bends logically to minimize stress and rotation.
What Are the Most Common Bending Design Mistakes?
Many quality issues stem from basic design mistakes. These include too-tight radii, missing reliefs, or ignoring grain direction4.
| ❌ Mistake | ⚠️ Why It Matters |
|---|---|
| Using tight radii in hard materials | Cracking or wrinkling |
| Skipping bend reliefs | Tearing near corners |
| Placing holes too close to bends | Distortion or misalignment |
| Neglecting grain direction | Increases fracture risk |
| Over-specifying tolerances | Raises costs without benefit |
| No allowance for springback | Final angles too wide or narrow |
| Using sharp inside corners | Causes cracks and tool wear |
| Skipping first-article checks | Hundreds of defects may go unnoticed |
Does Operator Skill Still Matter in Automated Bending?
Yes—despite automation, operator experience still plays a role in setup, tool calibration, and material handling. Even CNC systems need correct programming and part alignment.
For consistent results, use press brakes with real-time angle measurement and train operators to monitor quality actively.
How Can You Validate Bend Quality Early?
Early validation prevents mass production of defective parts. Use first-article inspection5 and in-line quality checks (e.g. laser or gauge-based angle testing).
Send out test samples early, especially for tight-tolerance or load-bearing components.
What’s the Best Way to Design for Consistent Bend Quality?
Design for manufacturing (DFM) reduces bending errors and production delays. Best practices include:
- Use consistent bend radii and directions
- Avoid sharp corners or thin flanges
- Add reliefs near corners or edges
- Stay within known material limits
- Design for automated brake setups when possible
🎯 Struggling with Bend Accuracy? Send Us Your File for a Free Review
Need help diagnosing springback, cracking, or dimensional issues?
📩 Upload your STEP/IGES file or 2D drawing, and we’ll provide:
- Custom bend sequence and flat layout guidance
- DFM recommendations for CNC, robotic, or manual brakes
- Material/radius compatibility checks
- Quote + manufacturability feedback within 1–2 business days
👉 Send Your File Now or email marketing@chinaruicheng.com
-
