5 axis machining service1 is essential for producing metal components with complex geometries2, deep cavities, multi-angle features3, and tight tolerances. It allows multiple surfaces to be processed in a single setup, dramatically improving precision and efficiency. For industries that require accuracy, stability, and structural integrity, 5-axis machining has become the preferred manufacturing method.
What Makes 5-Axis Machining Different?

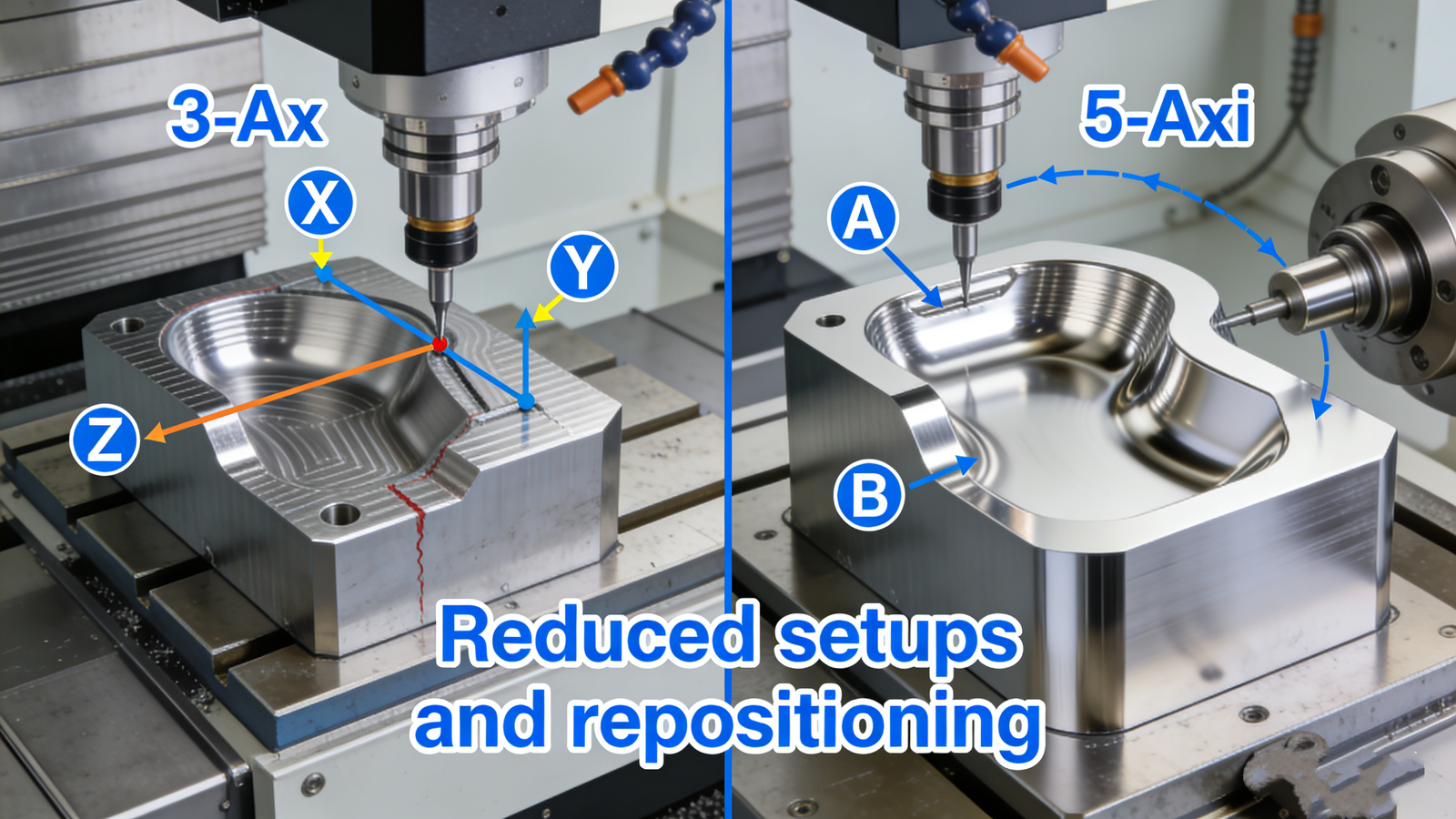

5-axis machining moves cutting tools along X, Y, Z, and rotates simultaneously along A and B axes. This enables the tool to approach the part from virtually any angle.
The result is higher precision, fewer setups, and better surface quality for complex parts.
Typical advantages include:
Reduced setups and repositioning
Better dimensional consistency
Improved surface finish on curved surfaces
Ability to machine undercuts and deep pockets
Higher throughput and lower risk of human error
Why Choose Ruicheng for 5 Axis Machining?
Ruicheng operates multiple high-end 5-axis CNC machining centers capable of producing intricate metal parts for robotics, aerospace, automotive, machinery, and high-precision applications.
Our company uses advanced CAM programming4, intelligent toolpath planning, and ISO 9001-certified quality control5 to deliver stable and repeatable precision.
Key strengths:

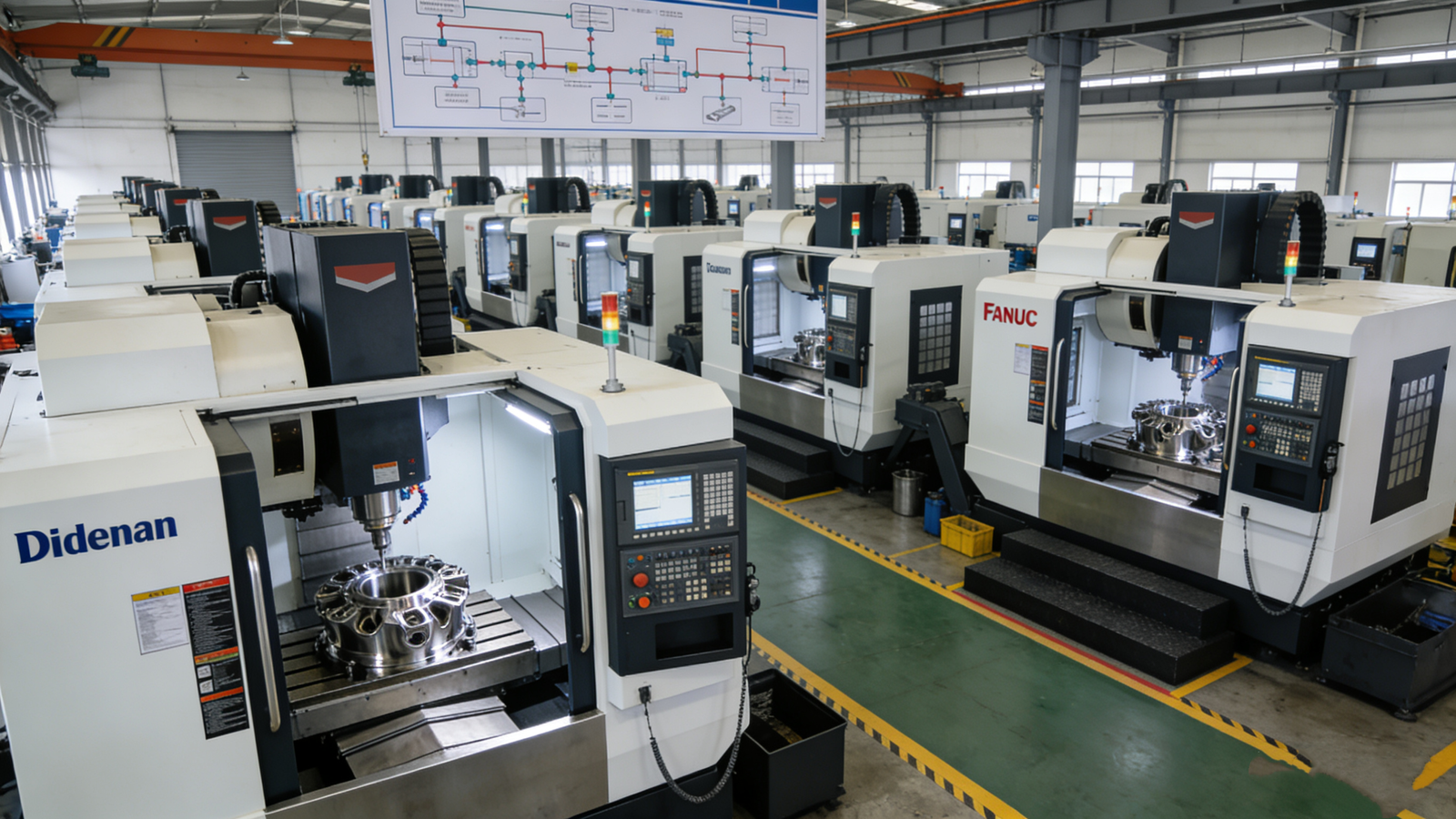

Dedicated 5-axis machining workshop
Heidenhain & Fanuc-controlled 5-axis centers
Experienced engineering and programming team
In-machine probing for real-time accuracy tracking
CMM inspection for critical features
Ruicheng’s 5-Axis Equipment Capability
Our 5-axis machines allow simultaneous multi-surface machining, achieving higher speed, precision, and complexity compared to traditional 3-axis setups.
This capability is especially important for components that require freeform surfaces or multi-angle consistency.
| Machine Type | Stroke Range | Accuracy | Applications |
|---|---|---|---|

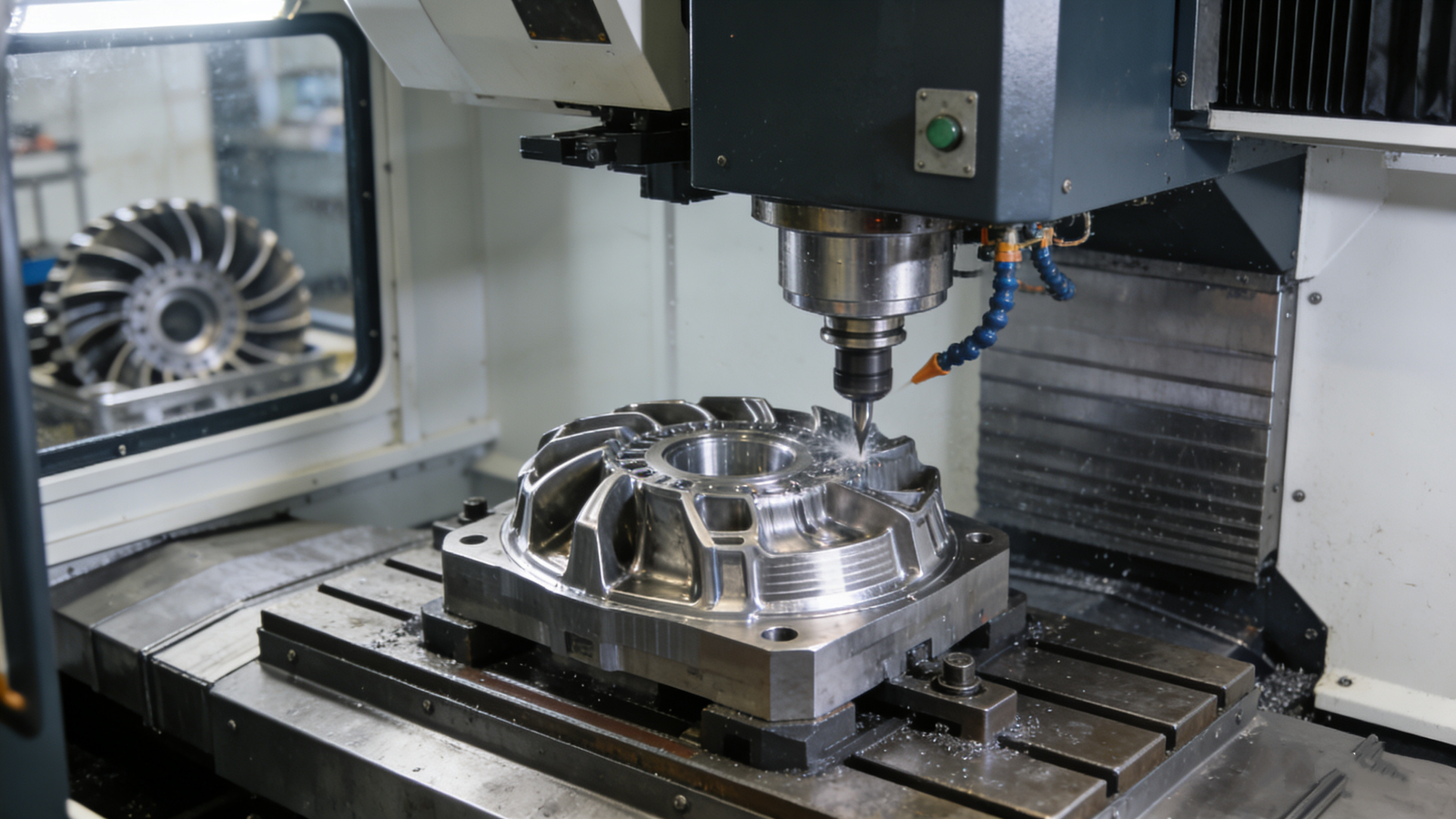

| 5-axis vertical machining center | 600 × 500 × 400 mm | ±0.005–0.01 mm | Complex housings, impellers |
| 5-axis gantry machining center | 1200 × 800 × 600 mm | ±0.01–0.02 mm | Large aerospace or fixture parts |
| High-speed 5-axis milling centers | 300 × 300 × 200 mm | ±0.005 mm | Precision micro-features |
What Types of Parts Benefit Most From 5-Axis Machining?
5-axis machining is ideal for components requiring high structural integrity6 and complex contouring.
The ability to machine all sides in one setup ensures stability and eliminates alignment errors.
Applications include:

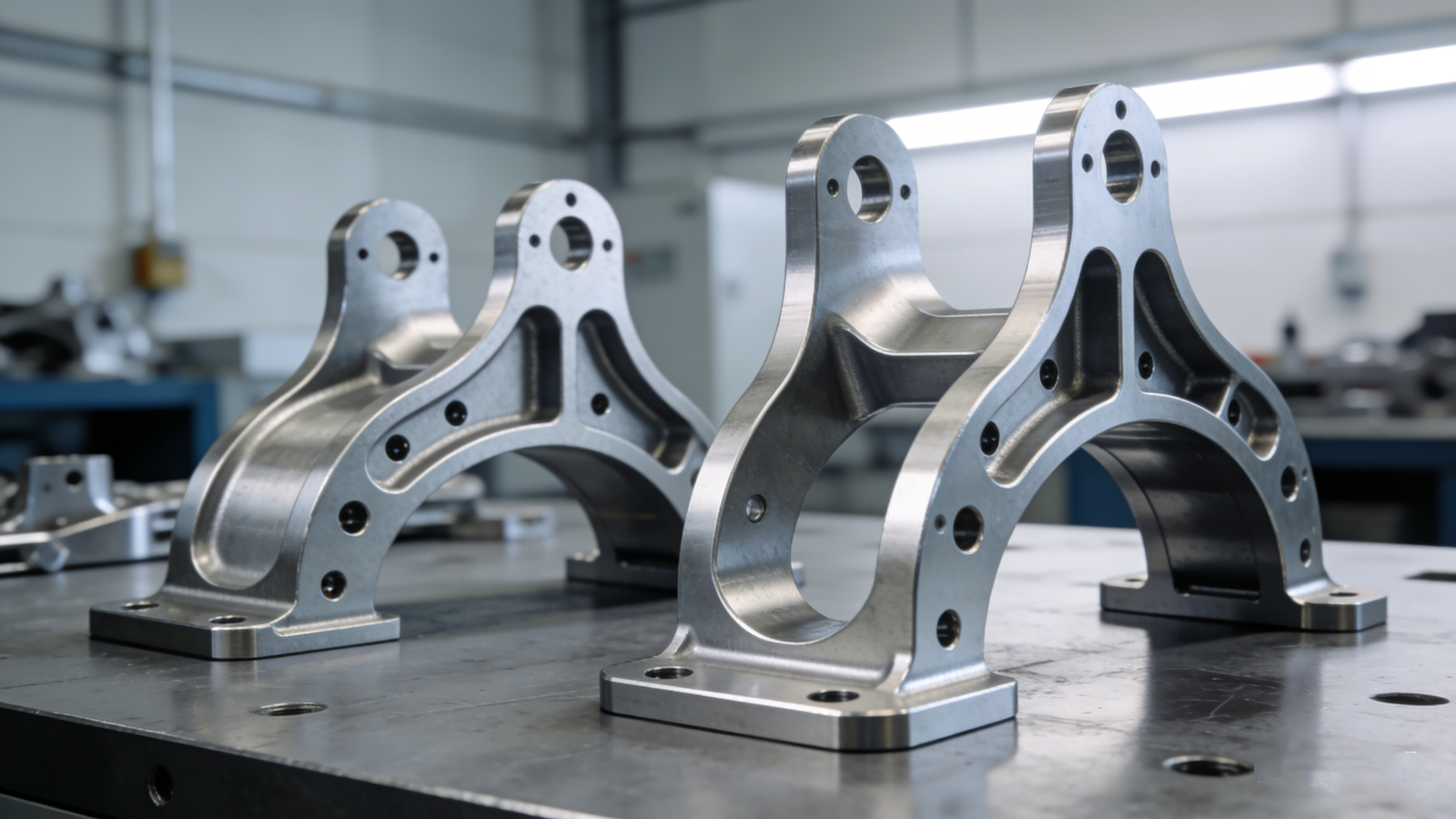

Aerospace brackets and housings
Robotic arm joints
Optical mounts and alignment bases
Automotive performance components
Medical implant prototypes
Precision fluid channel parts
How Ruicheng Ensures Precision in 5-Axis Machining
Producing stable and accurate 5-axis parts requires careful planning and strict control at every stage.
The key to reliability is integrating high-end machinery with experienced engineering and advanced measurement technology.
Our workflow includes:

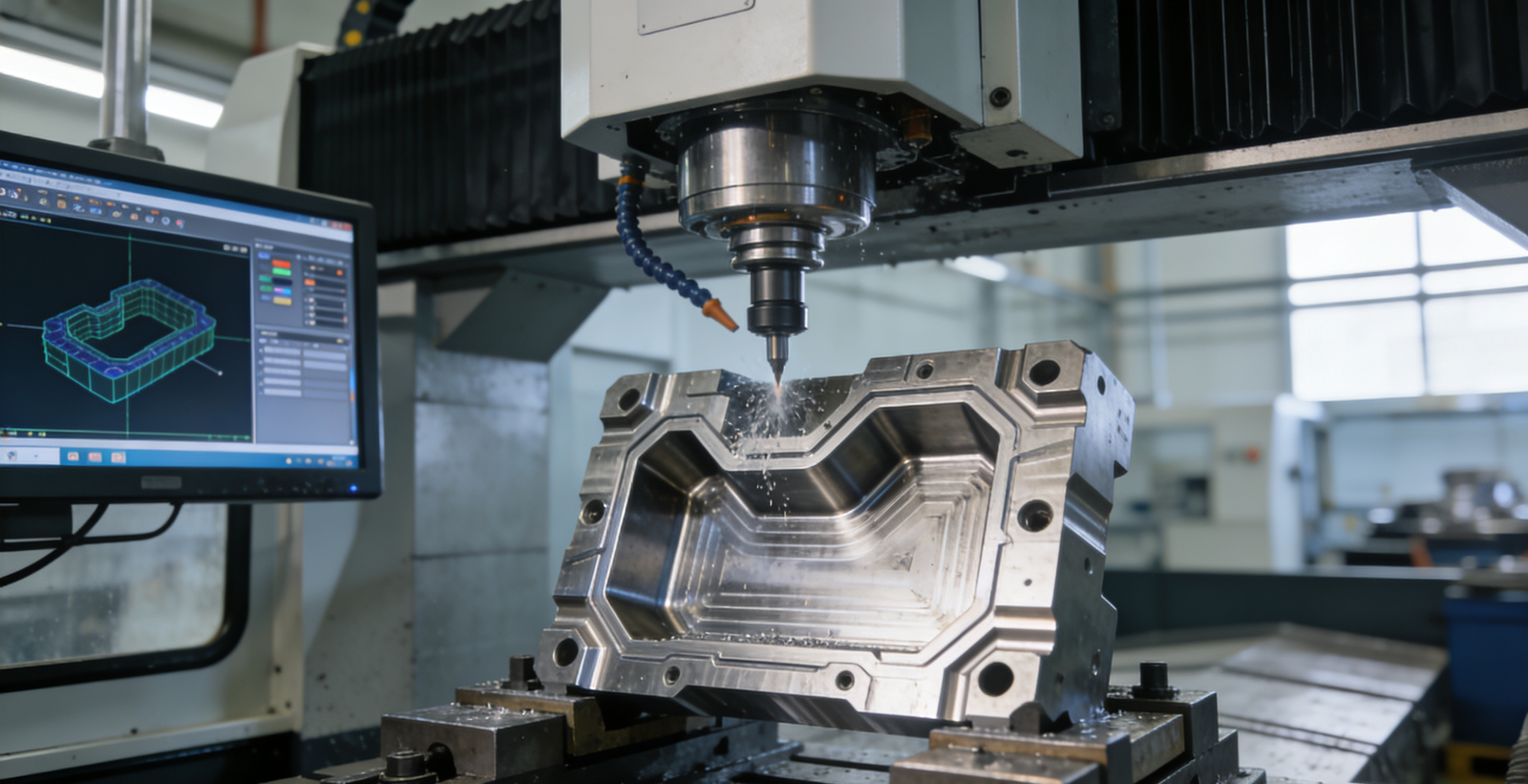

Multi-axis CAM simulation and collision check

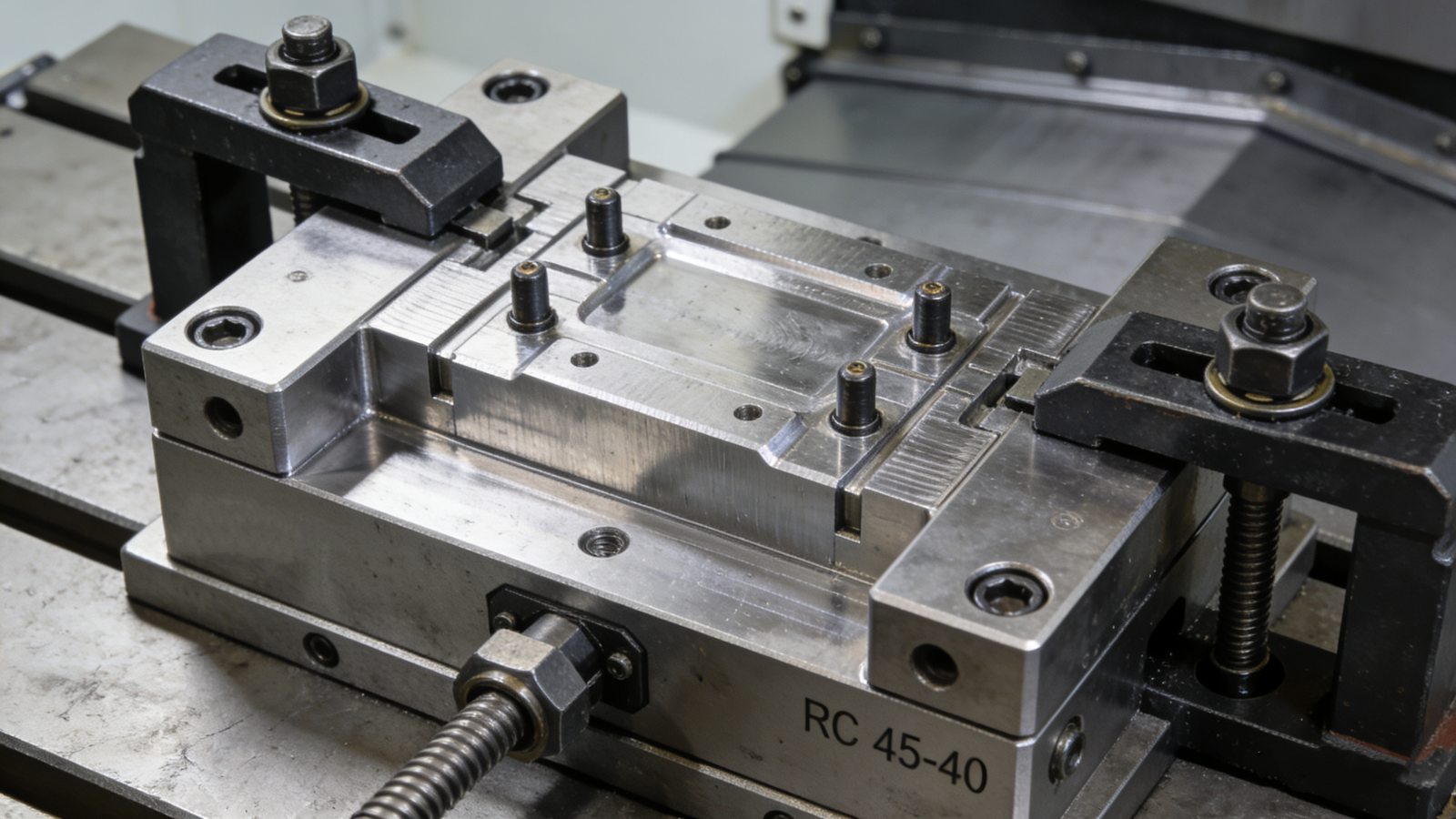

High-rigidity fixtures designed in-house
Tool length and radius compensation
Thermal stabilization for long runs
In-machine probing for mid-process verification
CMM inspection7 with full dimensional reports
Case Study — Complex Curved Housing for a Robotics Manufacturer
A robotics customer needed a curved aluminum housing with multiple angled mounting surfaces and a ±0.01 mm positioning tolerance. Most suppliers struggled due to the compound angles and risk of deformation. Ruicheng redesigned the fixture strategy and optimized the 5-axis toolpaths to reduce load and improve stability.
The result was a perfectly consistent batch of 280 units, all passing CMM inspection with zero rejections.
FAQs About 5 Axis Machining
Do 5-axis machines produce more accurate parts?
Yes. Because the part stays in one setup, alignment errors are eliminated. This significantly improves dimensional stability and surface quality.
Is 5-axis machining more expensive?
It can be, but fewer setups reduce labor time. For complex parts, 5-axis machining is often more cost-efficient overall.
What materials can Ruicheng machine in 5-axis?
Aluminum, stainless steel, steel alloys, brass, titanium, magnesium, and more. Material selection does not limit our 5-axis capability.
Does Ruicheng support low-volume and mass production?
Yes. Our company offers both rapid prototype machining8 and long-term production scaling. We adapt our process to meet different project demands.
Contact Us
For advanced 5-axis machining support or complex metal part production, feel free to reach out:
Email: marketing@chinaruicheng.com
WhatsApp: +8615980769781
Contact page: https://custommetalpro.com/contact-us/
Ruicheng is ready to support your precision metal projects with professional 5-axis capability and ISO-certified quality control.
-
